Brake Motors SIEMENS

7 items

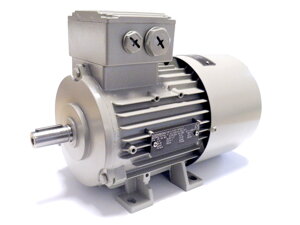

elektromotor-brzdovyThree-phase asynchronous low-voltage motors with cast-iron or aluminium housing with frame size 63 - 315 mm with brake.

Overview:
Frame size: 63M - 315L
Power range: 0,12 - 200 kW
Number of poles: 2, 4, 6, 8
Efficiency classes: IE1, IE2, IE3
Rated frequency and voltage up to 3 kW: 230VD / 400VY, 50Hz // 460VY, 60Hz
Rated frequency and voltage from 3kW: 400VD / 690VY, 50Hz // 460VD, 60Hz
Frequency: 50 / 60 Hz
Degree of protection: IP 55
Housing: Cast-iron, Aluminium
Type of constructions: IM B3, IM B5, IM B35, IM B34, IM B14, IM B14S

  • Ambient temperature from -20°C to + 40°C
  • Insulation class F
  • Installation altitude up to 1000 m
  • Operating mode continuous duty S1
  • Standard paint finish, color RAL 7030

 elektromotor s brzdou



Rated speed:

Efficiency class:
